🔥 Mechanic iScout Infrared Thermal Imaging Camera

Professional PCB • Motherboard • Short Circuit • Thermal Analysis Solution

Electronic faults are not always visible under a microscope. Many damaged ICs, leaking capacitors, short circuits and abnormal components generate heat long before visible damage appears. Finding those hidden faults manually often takes hours and may even require unnecessary component removal.

The Mechanic iScout Infrared Thermal Imaging Camera transforms fault diagnosis into a fast and intelligent process by converting invisible heat into a detailed thermal image. Instead of guessing where the problem exists, technicians can instantly identify overheating components, abnormal current leakage and faulty circuit areas with remarkable accuracy.

🌡 Thermal Vision Instead Of Guesswork

Traditional PCB troubleshooting depends heavily on experience, multimeter testing and visual inspection. Unfortunately, many internal faults remain hidden because the damaged component may look completely normal from the outside.

Mechanic iScout detects temperature differences across the entire motherboard, allowing technicians to observe heat patterns that reveal hidden electrical faults within seconds.

This thermal approach significantly reduces repair time while improving diagnostic confidence.

📊 Intelligent 3D Thermal Field Analysis

Unlike conventional thermal viewers that simply display colored heat spots, Mechanic iScout introduces an advanced 3D thermal field visualization system.

Heat intensity is represented using dynamic elevation maps, allowing technicians to identify hot zones much faster than ordinary 2D thermal displays.

This visualization method provides a clearer understanding of thermal behavior during motherboard diagnosis, product evaluation and electronic design analysis.

📈 Compare Healthy And Faulty Boards

One of the most practical diagnostic features is board comparison mode.

Users can compare a known working motherboard with a faulty motherboard side-by-side, making abnormal heat distribution immediately visible.

• ✔ Faster fault verification
• ✔ Easier troubleshooting
• ✔ Improved repair accuracy
• ✔ Better quality control
• ✔ Reduced diagnostic time

Instead of searching every component manually, technicians can directly identify temperature differences between the two boards.

🖥 Works With Multiple Devices

Mechanic iScout is designed to integrate seamlessly into modern repair workstations.

Using the supplied Type-C connection, the thermal camera can connect with compatible smartphones, desktop computers and laptops. Dedicated software displays live thermal imaging, temperature analysis and advanced diagnostic tools directly on the connected device.

This flexible setup allows technicians to work comfortably in different repair environments without requiring a standalone display.

🎨 Multiple Color Analysis Modes

Every repair situation is different, which is why the software supports multiple thermal color palettes and adjustable contrast settings.

Changing color modes helps technicians highlight tiny temperature variations that may otherwise remain unnoticed.

This becomes especially useful when locating partially shorted capacitors, leaking power rails and unstable integrated circuits.

🔬 Flexible Macro Inspection

The included macro lens allows close-range inspection for microscopic electronic components. Depending on the repair requirement, users can work at approximately 100–150mm standard distance or use the macro setup for observations around 30mm.

The adjustable support bracket also enables convenient angle adjustment, making thermal inspection easier under microscopes or during motherboard servicing.

📋 Technical Specifications

🛠 Professional Repair Applications

🚀 Why Technicians Prefer Thermal Imaging

Thermal diagnosis helps reduce unnecessary component removal by visually identifying abnormal heat generation before physical disassembly begins. Instead of replacing multiple components through trial and error, technicians can focus directly on suspicious areas showing unusual thermal activity.

This approach improves repair efficiency, reduces labour time and minimizes the risk of damaging nearby components during troubleshooting.

⭐ Key Advantages

• ✔ Fast motherboard fault localization
• ✔ One-key leakage detection
• ✔ Detects leakage from as low as 6mA
• ✔ High-resolution infrared thermal imaging
• ✔ Intelligent 3D heat distribution analysis
• ✔ Good vs Faulty board comparison mode
• ✔ Multiple thermal color palettes
• ✔ Adjustable thermal contrast
• ✔ Compatible with phones, laptops and computers
• ✔ Macro lens for close-range inspection
• ✔ Adjustable viewing angle support
• ✔ Professional repair workshop solution

📦 Package Contents

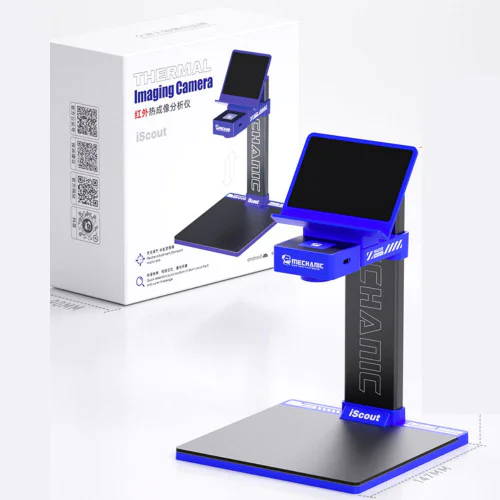

• 1 × Mechanic iScout Infrared Thermal Imaging Camera
• 2 × USB Type-C Data Cables
• 1 × Macro Lens

💡 Ideal For

The Mechanic iScout is suitable for professionals who require fast, non-contact thermal diagnostics across a wide range of electronic repair environments.

• 📱 Mobile Phone Repair Shops
• 💻 Laptop Service Centers
• 🔬 PCB Repair Laboratories
• ⚙ Electronics Manufacturing
• 🧪 Research & Development Labs
• 🎓 Technical Training Institutes
• 🏭 Industrial Maintenance Teams

🏆 Final Verdict

Mechanic iScout Infrared Thermal Imaging Camera provides a smarter approach to PCB and motherboard diagnostics by converting invisible heat into actionable repair information. Its combination of high-resolution infrared imaging, intelligent leakage detection, 3D thermal visualization and board comparison tools allows technicians to locate hidden faults quickly while improving repair accuracy.

Whether diagnosing smartphone motherboards, laptop logic boards or complex electronic circuits, the iScout helps reduce troubleshooting time and enhances confidence throughout the repair process, making it a valuable addition to any professional electronics workshop.
