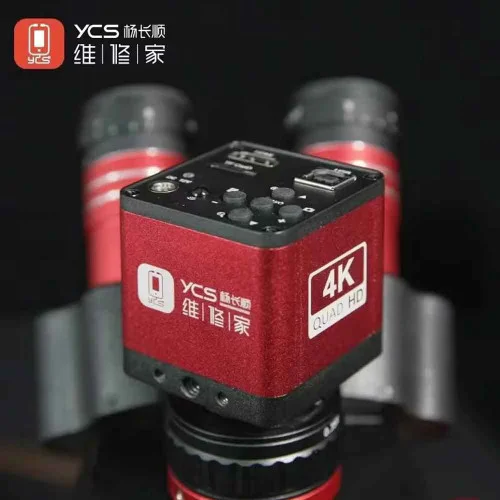

YCS 4K HD Microscope Camera for Mobile Phone Motherboard Repair & PCB Inspection
YCS 4K HD Microscope Camera for Mobile Phone Motherboard Repair & Inspection
Modern smartphone motherboards contain thousands of microscopic electronic components packed into an incredibly small area. A tiny cracked solder joint, damaged capacitor or burnt IC can easily go unnoticed without proper magnification and high-resolution imaging.
The YCS 4K HD Microscope Camera has been developed for technicians who require crystal-clear imaging during PCB diagnostics, microsoldering and motherboard inspection. By combining an imported CMOS image sensor with true 4K image output, the camera delivers detailed visuals that help identify defects with greater confidence.
Why High Resolution Matters During PCB Repair
Many repair failures are not caused by lack of technical skill—they occur because the problem simply cannot be seen clearly.
Tiny solder bridges, lifted pads, damaged traces and microscopic cracks often remain invisible under low-quality imaging systems. When image quality improves, repair accuracy naturally improves as well.
Higher image clarity allows technicians to inspect solder joints, identify component damage and perform precision repairs with significantly greater confidence.
Built Around an Imported 1/1.8-inch CMOS Image Sensor
At the heart of the camera is an imported 1/1.8-inch CMOS sensor designed to capture fine electronic details with excellent sharpness and color reproduction.
The larger imaging surface helps produce brighter, cleaner and more detailed images, making it easier to distinguish component markings, solder joints and PCB traces during inspection.
Whether working on smartphone motherboards or delicate electronic assemblies, the camera provides a professional viewing experience suitable for everyday workshop use.
✔ Better Detail Recognition
Fine PCB traces, IC pins and miniature SMD components become easier to inspect thanks to improved image sharpness.
✔ Accurate Color Reproduction
Natural color output helps technicians identify oxidation, overheating, burnt areas and damaged solder joints more accurately.

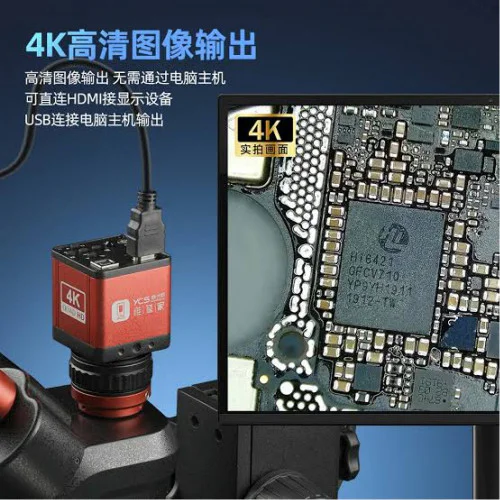

True 4K Image Output Without Complex Setup
Unlike traditional microscope cameras that depend entirely on computer software for viewing, the YCS 4K Camera supports direct HDMI output.
Simply connect the camera to a compatible HDMI monitor to begin viewing high-definition live images immediately. This allows technicians to build a clean, efficient workstation without relying on complicated computer configurations for basic inspection tasks.
- ✔ Ultra-clear 4K image quality
- ✔ Direct HDMI monitor connection
- ✔ Smooth real-time display
- ✔ Ideal for continuous workshop operation
Flexible Computer Connectivity
For technicians who need image recording, documentation or larger workflow integration, the camera also supports USB connectivity with compatible computer systems.
This flexibility allows users to capture inspection images, create repair records and review detailed electronic components whenever required.
Designed for More Than Mobile Repair
Although widely used for smartphone motherboard repair, the YCS 4K Camera is suitable for numerous precision inspection environments where image quality is critical.
- Mobile Phone Motherboard Inspection
- PCB Diagnostics
- Microsoldering
- IC Replacement
- BGA Rework
- Electronic Manufacturing
- Quality Control Inspection
- Industrial Component Analysis
- Educational Laboratories
- Research Applications
Capture Every Important Repair Moment
Complex repairs often require technicians to record images before and after component replacement. The YCS microscope camera supports quick photo and video capture, making it easier to document repair progress, compare board conditions and create visual records for future reference.
Instead of relying on external recording equipment, technicians can conveniently capture important inspection moments directly through the camera system.
One-Click White Balance for Accurate Color Reproduction
Electronic diagnosis depends heavily on color accuracy. Slight differences in PCB color, oxidation, burnt components or damaged solder joints can become difficult to identify if the camera produces incorrect colors.
The YCS 4K HD Microscope Camera features a convenient One-Click White Balance function that automatically adjusts color calibration with a single press. Instead of manually correcting image tones every time lighting conditions change, technicians can restore natural colors instantly, helping improve inspection accuracy while saving valuable repair time.
Whether inspecting mobile phone motherboards, laptop PCBs or precision electronic assemblies, accurate color output provides a clearer understanding of component condition and repair quality.
Integrated Controls Designed for Faster Workflow
Professional repair environments demand speed and efficiency. Constantly navigating software menus during inspection can interrupt concentration and reduce productivity.
The YCS camera incorporates multiple control functions directly into its interface, allowing technicians to access commonly used operations quickly without complicated setup procedures.
- ✔ Quick image capture
- ✔ Instant video recording
- ✔ One-touch white balance
- ✔ Convenient function buttons
- ✔ User-friendly operation
- ✔ Suitable for continuous workshop use
Why Repair Professionals Choose 4K Inspection Cameras
As smartphone motherboards become increasingly compact, traditional low-resolution cameras struggle to display fine solder joints and miniature electronic components clearly.
High-resolution imaging improves confidence during delicate repair procedures by allowing technicians to inspect tiny details before, during and after soldering. Better visibility often leads to more accurate diagnostics, cleaner workmanship and reduced chances of overlooking hidden faults.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | YCS 4K HD Microscope Camera |
| Image Sensor | Imported 1/1.8-inch CMOS Sensor |
| Video Output | 4K HDMI Output |
| Computer Connection | USB |
| White Balance | Automatic One-Click White Balance |
| Image Capture | Photo & Video Recording |
| Applications | PCB Inspection, Mobile Repair, Microsoldering & Industrial Inspection |
Package Includes
- 1 × YCS 4K HD Microscope Camera
- 1 × HDMI Cable
- 1 × USB Cable
- 1 × Remote Control
Ideal Applications
The YCS 4K HD Microscope Camera is suitable for a wide range of precision inspection and repair tasks, including:
- Mobile Phone Motherboard Repair
- PCB Inspection
- Microsoldering
- IC Replacement
- BGA Rework
- Laptop Repair
- Electronic Manufacturing
- Quality Control Inspection
- Research Laboratories
- Technical Training Institutes
Professional Recommendation
For technicians performing precision motherboard repairs every day, image clarity is just as important as the quality of the soldering station or microscope. Investing in a reliable 4K microscope camera helps reduce eye strain, improves diagnostic accuracy and allows detailed inspection of even the smallest electronic components.
Final Verdict
The YCS 4K HD Microscope Camera is a powerful imaging solution designed for modern electronics repair professionals. Combining a high-quality imported CMOS sensor, true 4K HDMI output, USB connectivity, intelligent one-click white balance and integrated control functions, it delivers the image clarity required for accurate PCB inspection and microsoldering.
Whether you're operating a mobile phone repair shop, an electronics service center or an industrial inspection workstation, this camera provides a dependable platform for high-resolution viewing, documentation and detailed component analysis.
