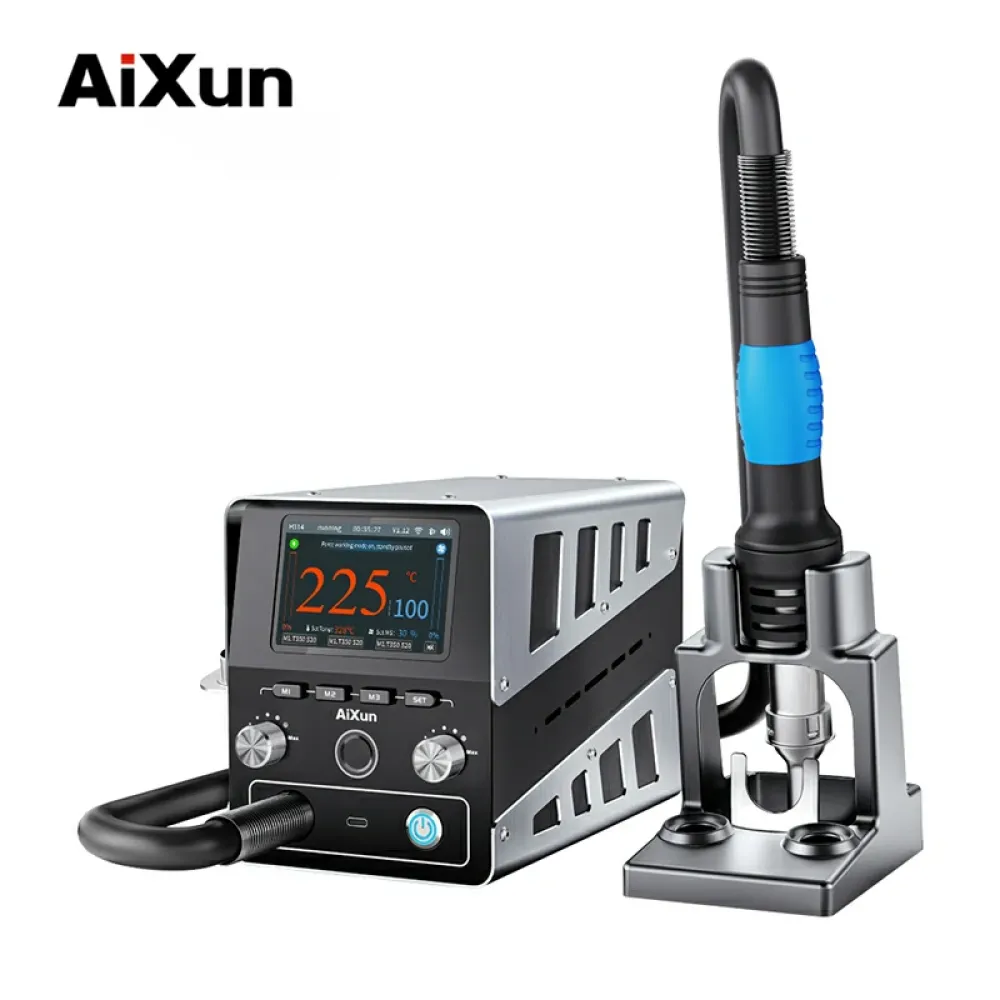

AiXun H314 1400W Intelligent Digital High-Power Hot Air Gun Desoldering Rework Station

Name: AiXun H314 1400W Intelligent Digital High-Power Hot Air Gun Desoldering Rework Station
Brand: Aixun
SKU: H314
Availability: InStock

₹24,999.00 ₹27,999.00 -11%

Brand: Aixun

Model: H314

Availability: In Stock

Qty

🚚 Check Delivery Availability

Add to wishlist
Add to compare

Tags: AiXun H314 Hot Air Station BGA Rework

Categories Cart Account Search Recent View Go to Top

Description
Shipping Methods

Product Description

AiXun H314 1400W Intelligent Digital High-Power Hot Air Gun Desoldering Rework Station

A high-power intelligent hot air rework station designed for controlled heating, desoldering and electronic repair work.

The AiXun H314 is an intelligent digital hot air rework station equipped with a 1400W heating core and a 3.5-inch IPS display. It combines high-power heating with temperature and airflow control, multiple operating modes, memory channels, fingerprint-based account switching and Wi-Fi/Bluetooth connectivity.

```

According to AiXun's product specifications, the H314 can reach 380°C in approximately 3 seconds under Top Speed mode. It supports Soft, Standard and Top Speed modes, with a 9-channel design and storage for up to 45 quick memory channels across 5 user accounts.

```

Key Features

```

1400W High-Power Heating
The H314 uses a 1400W rated heating core for rapid heating and high-power hot air rework applications.

Rapid Heating
Under Top Speed mode, the heating temperature can reach 380°C in approximately 3 seconds.

3.5-Inch IPS Display
The station features a 3.5-inch IPS display for operation and adjustment of the hot air system.

Three Operating Modes
Soft, Standard and Top Speed modes are available for different hot air rework requirements.

Fingerprint User Management
Built-in fingerprint recognition allows users to switch between up to 5 account groups and access their respective saved data.

Memory Channels
The H314 provides a 9-channel design and can save up to 45 quick memory channels.

Wi-Fi & Bluetooth Connectivity
Built-in Wi-Fi and Bluetooth connectivity supports device interconnection and OTA software updates.

Segment & Curve Desoldering
The H314 supports segmented and curve desoldering functions for controlled hot air rework processes.

3D Air Nozzle & Spring-Lock Design
The air nozzle system uses a spring-lock design together with a 3D air nozzle and AiXun's temperature-control and air-channel design.

AI Voice & Remote Control
The system supports AI voice central control with multilingual voice control and remote key control functions.

```

Technical Specifications

```

Brand	AiXun
Model	H314
Product Name	Intelligent Hot Air Gun
Display	3.5-inch IPS
Rated Power	1400W
Input Voltage	220V
Temperature Range	100–500°C
Airflow	15–50 m/s
Airflow Range	1%–150%
Communication	Type-C / Wi-Fi / Bluetooth
Air Supply Type	Straight Wind / Cyclone

```

Package Contents

```

1 × AiXun H314 Rework Station
1 × Power Cord
1 × Standby Holder
4 × Nozzles

```

Note: The AiXun H314 is a high-temperature professional rework machine. Use suitable temperature and airflow settings for the component and board being worked on. The hot air nozzle and heated parts can become extremely hot during operation.
