KADA 2018D+ 2-in-1 SMD Hot Air Blower and Soldering Iron Station

KADA 2018D+ 2-in-1 Hot Air & Soldering Station

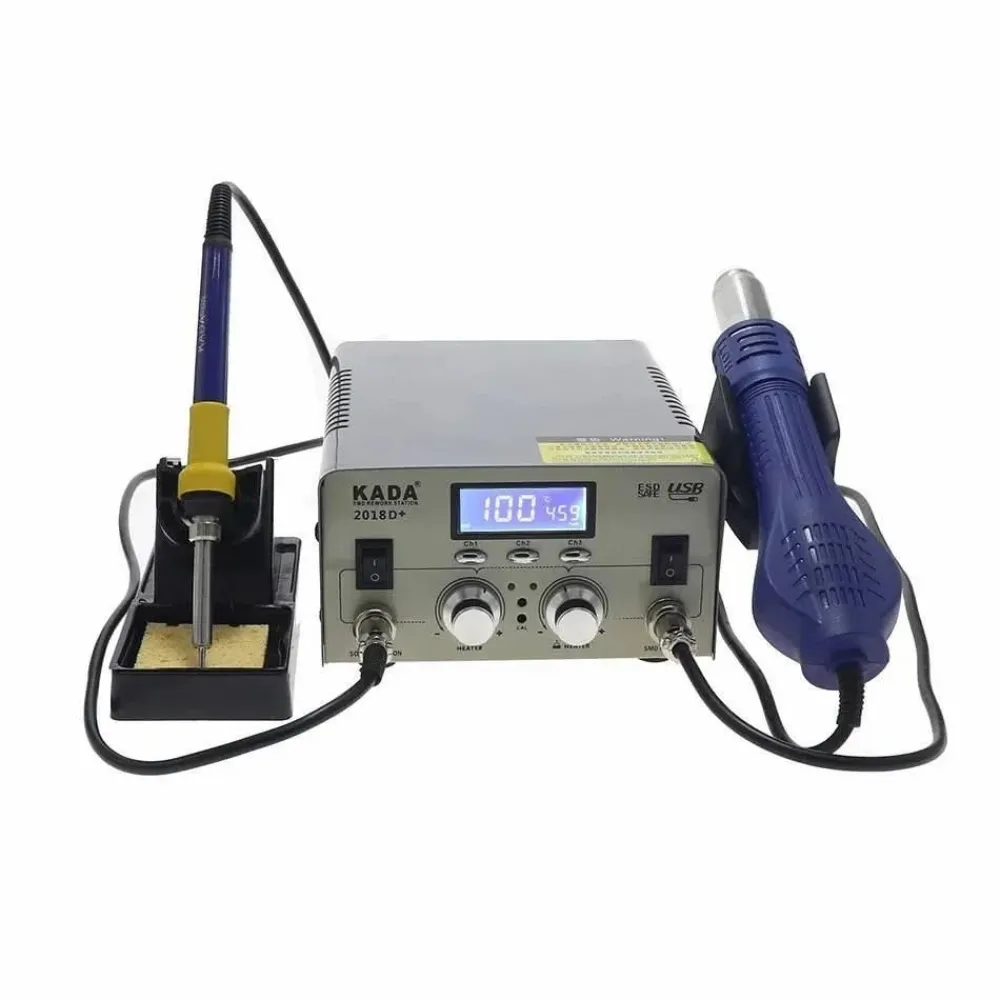

The KADA 2018D+ is a combined hot air rework and soldering station designed for electronics repair and PCB rework. It features a microcomputer LCD display, adjustable temperature controls, three hot air memory settings and an integrated hot air gun holder with a sleep function.

Key Features

• Combined hot air blower and soldering iron station.
• Microcomputer-controlled LCD display.
• Separate temperature ranges for hot air and soldering iron.
• Three hot air memory settings: CH1, CH2 and CH3.
• Brushless fan with soft airflow.
• Hot air gun holder with automatic cooling and sleep function.
• Rear USB power output for compatible devices.

Technical Specifications

Operating Instructions

1. Starting the Station
Connect the handles and the appropriate power supply, then switch on the unit. The default settings are 100°C with maximum airflow for the hot air gun and 200°C for the soldering iron.

2. Temperature and Airflow Adjustment
Turn the control knob to adjust the temperature. Press the knob to switch to the hot air airflow adjustment when required.

3. Saving Temperature Settings
Set the desired hot air temperature and airflow. Press and hold CH1, CH2 or CH3 until a long beep indicates that the setting has been saved.

4. Cooling and Standby
After hot air use, return the hot air gun to its holder and allow the unit to complete its automatic cooling and standby process before switching off the power.

5. USB Power Output
The USB port on the rear panel can supply power to compatible USB devices, according to the unit's output specifications.

Package Contents

• 1 × KADA 2018D+ Main Unit
• 1 × Soldering Iron
• 1 × Hot Air Gun
• 1 × Soldering Iron Holder

Note: Confirm the correct 110V or 220V version before ordering. Package contents are as specified by the supplier.
